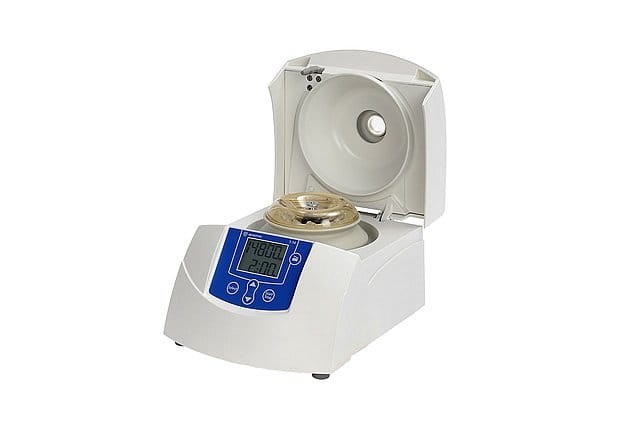

Sigma 1-14 – Compact High-Performance Microcentrifuge

Available in the Vietnam market only.

The Sigma 1-14 is a compact unrefrigerated microcentrifuge designed for fast and reliable separation of small-volume laboratory samples. With speeds up to 14,800 rpm, a maximum RCF of approximately 16,163 × g and a maximum capacity of 24 × 2 mL, it combines high centrifugal performance with a small laboratory footprint.

A wide selection of fixed-angle rotors enables the Sigma 1-14 to accommodate standard microtubes, PCR strips, microhaematocrit capillaries and spin-column filter tubes, making it suitable for molecular biology, clinical chemistry and general laboratory applications.

Key Features

Maximum speed: 14,800 rpm.
Maximum RCF: approx. 16,163 × g.
Maximum capacity: 24 × 1.5/2.0 mL.
Speed range from 200 to 14,800 rpm.
Compact benchtop design.
Short acceleration and braking times.
Low noise level of ≤54 dB(A) with selected rotor.
Motorised lid lock for convenient operation.
Maintenance-free drive motor.
Overspeed monitoring.
Window in the lid for external speed monitoring.

Typical Applications

DNA and RNA isolation.
Protein isolation and purification.
PCR sample preparation.
Spin-column workflows.
Clinical chemistry.
Food laboratory testing.
Pharmaceutical and life science research.
University and research laboratories.

Technical Specifications

Parameter	Specification
Model	Sigma 1-14
Type	Unrefrigerated microcentrifuge
Maximum capacity	24 × 2 mL
Maximum speed	14,800 rpm
Minimum speed	200 rpm
Maximum RCF	Approx. 16,163 × g
Maximum acceleration time	≤15 s, depending on rotor
Maximum braking time	≤12 s, depending on rotor
Noise level	≤54 dB(A), depending on rotor
Dimensions	176 × 266 × 212 mm (H × W × D)
Weight without rotor	Approx. 6 kg

Flexible Rotor Options

The Sigma 1-14 supports several fixed-angle rotor configurations for different sample formats, including:

24 × 1.5/2.0 mL microtubes.
12 × 1.5/2.0 mL microtubes.
16 × 0.2 mL PCR tubes or PCR strips.
Spin-column filter tubes.
Microhaematocrit and small-volume tubes with suitable accessories.

Frequently Asked Questions

What is the maximum speed of the Sigma 1-14?

The Sigma 1-14 reaches a maximum speed of 14,800 rpm and a maximum relative centrifugal force of approximately 16,163 × g.

How many tubes can the Sigma 1-14 hold?

With the appropriate fixed-angle rotor, the centrifuge can accommodate up to 24 × 1.5/2.0 mL tubes.

Is the Sigma 1-14 refrigerated?

No. The Sigma 1-14 is an unrefrigerated microcentrifuge. For applications requiring temperature control, the refrigerated Sigma 1-14K should be considered.

What applications is the Sigma 1-14 suitable for?

Typical applications include DNA, RNA and protein isolation, PCR workflows, spin-column preparation, clinical chemistry and routine life science laboratory centrifugation.
