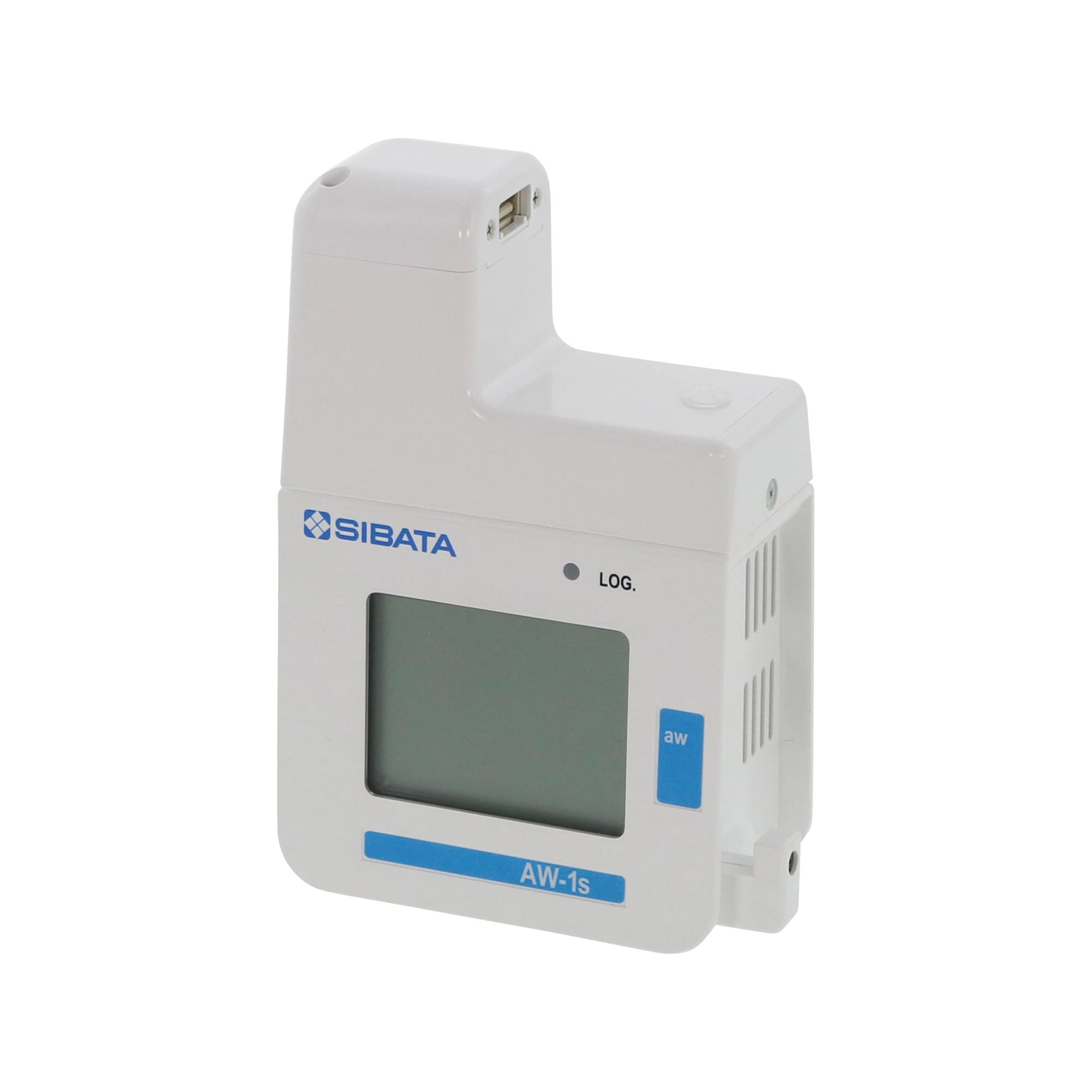

SIBATA AW-1s – Compact Water Activity Meter
Distributed by RiverFAM SA in Australia and Vietnam.
The SIBATA AW-1s is a compact and lightweight water activity meter designed for convenient measurement of powders and liquids. Its portable design makes it suitable for quality control, product development, raw-material inspection and routine testing in food, pharmaceutical and cosmetic laboratories.
The AW-1s uses detachable sensor-equipped sample containers and offers two sensor options, allowing users to select the most appropriate configuration for their sample and application.
Key Features
- Compact and lightweight portable design.
- Suitable for both powder and liquid samples.
- Two optional sensor types: capacitive and electrical resistance.
- Stability Mode for standard measurement.
- Quick Mode for faster measurements.
- 1-, 2- or 3-point calibration.
- Stores up to 99 measurement results.
- Dedicated PC software via USB connection.
- Compatible with Windows 10 and Windows 11.
- Battery operation for portable use.
Two Sensor Options for Different Samples
The AW-1s can be used with two interchangeable sensor-equipped sample containers:
- Capacitive sensor: designed for precise measurement across a wide water activity range.
- Electrical resistance sensor: provides higher resistance to alcohol-containing samples.
If a sensor deteriorates, the sensor-equipped sample container can be replaced without replacing the complete instrument.
Typical Applications
- Food and beverage quality control.
- Pharmaceutical products.
- Cosmetics.
- Raw-material inspection.
- Product development and prototyping.
- Manufacturing quality control.
- Pre-shipment inspection.
- Educational and practical laboratory training.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AW-1s |
| Item Code | 060990-030 |
| Measurement Modes | Stability Mode / Quick Mode |
| Measurement Time | Stability Mode: approx. 5–30 min; Quick Mode: approx. 6 min |
| Data Logging | Up to 99 measurements |
| Recorded Data | Water activity, cell temperature, ambient temperature and ambient humidity |
| Communication | Dedicated PC software via USB |
| Power Supply | 4 × AA alkaline batteries or USB micro-B |
| Battery Operating Time | Approx. 60 hours with alkaline batteries |
| Dimensions | Approx. 80 × 45 × 115 mm (W × D × H) |
| Weight | Approx. 270 g including batteries |
Frequently Asked Questions
What is the SIBATA AW-1s used for?
The AW-1s measures water activity in powder and liquid samples for applications such as food quality control, pharmaceutical testing, cosmetics and product development.
Can the AW-1s measure both powders and liquids?
Yes. The instrument is designed for water activity measurement of both powder and liquid samples.
What is the difference between Stability Mode and Quick Mode?
Stability Mode is intended for standard measurement and typically takes approximately 5–30 minutes, while Quick Mode provides a faster measurement in approximately 6 minutes. Actual measurement time depends on the sample.
Can AW-1s data be transferred to a computer?
Yes. Dedicated PC software allows logged measurement data to be retrieved via USB and also supports instrument settings and calibration functions.
SIBATA AW-1s Water Activity Meter
Distributed by RiverFAM SA in Australia and Vietnam.
Contact us for product information, sensor selection and quotation for your water activity testing application.
