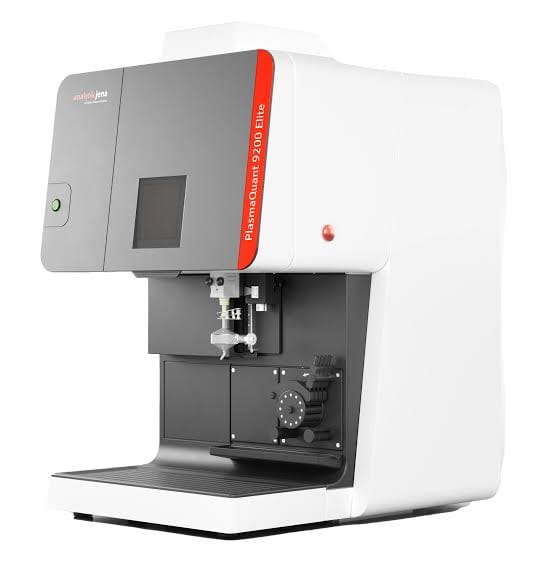

PlasmaQuant 9200 Series – High-Performance ICP-OES by Analytik Jena
Available in the Vietnam market only.
The Analytik Jena PlasmaQuant 9200 Series is a compact, high-performance ICP-OES platform for accurate elemental analysis from trace concentrations to major components. It combines high spectral resolution, robust plasma performance and flexible plasma observation for routine laboratories as well as challenging research and industrial applications.
Key Features
- Wide spectral range from 160 to 900 nm.
- Spectral resolution down to ~2 pm @ 200 nm with PlasmaQuant 9200 Elite.
- Plasma power up to 1,700 W.
- Dual View PLUS for flexible axial and radial plasma observation.
- Robust vertical plasma for high-matrix samples.
- Fast instrument start-up in less than 10 minutes.
- Compact design with instrument width of only 60 cm.
- Modular V Shuttle Torch with quartz and ceramic options.
- ASpect PQ software with automatic baseline and spectral interference correction.
PlasmaQuant 9200 Models
| Model | Spectral Resolution | Recommended Use |
|---|---|---|
| PlasmaQuant 9200 | ~6 pm @ 200 nm | Cost-effective routine elemental analysis and quality control. |
| PlasmaQuant 9200 Elite | ~2 pm @ 200 nm | High-resolution analysis of complex samples and severe spectral interferences. |
Typical Applications
- Drinking water, wastewater, soil and environmental samples.
- Food, feed and agricultural products.
- Pharmaceutical elemental impurities.
- Metals, alloys, ores and rare earth elements.
- Petroleum products, fuels and lubricating oils.
- Chemicals, polymers and advanced materials.
- High-salt and difficult sample matrices.
Technical Highlights
| Parameter | Specification |
|---|---|
| Spectral range | 160–900 nm |
| Best spectral resolution | ~2 pm @ 200 nm, Elite model |
| Plasma power | Up to 1,700 W |
| Plasma observation | Dual View PLUS – axial and radial |
| Instrument width | 60 cm |
| Start-up time | <10 minutes |
| Software | ASpect PQ |
Frequently Asked Questions
What is the PlasmaQuant 9200 Series used for?
The PlasmaQuant 9200 Series is designed for multi-element analysis by ICP-OES in environmental, food, pharmaceutical, chemical, petroleum, mining and materials laboratories.
What is the difference between PlasmaQuant 9200 and PlasmaQuant 9200 Elite?
The standard PlasmaQuant 9200 provides approximately 6 pm spectral resolution at 200 nm for cost-effective routine analysis, while the 9200 Elite achieves approximately 2 pm for demanding samples with complex spectral interferences.
Can PlasmaQuant 9200 analyze high-matrix samples?
Yes. Its robust vertical plasma, up to 1,700 W plasma power and dedicated sample introduction kits support saline, metal-rich, organic and other challenging matrices.
Analytik Jena PlasmaQuant 9200 Series
Available in the Vietnam market only.
